WHY - FL52

FLOOD LIGHT

Key Features
  • 160–170 lm/W High Efficacy — The highest efficacy rating in the WHY floodlight range (160 lm/W standard, 170 lm/W at 120°), optimised for high-specification, energy-critical projects.

  • Eight Interchangeable Lenses — Narrow-beam, asymmetric, and flood distributions (30°/60°/90°/120° plus Type II/III/IV) enable precise photometric design for diverse applications.

  • Wide Power Coverage (30W–600W) — Twelve configurations allow flexible matching to small and large-scale projects from a single product family.

  • Modular 1W-per-Module Design — Close-to-1W-per-module precision cost structure enables accurate power and cost control with a high cost-performance ratio.

  • Telescopic Adjustable Bracket — Telescopic mounting bracket provides precise angular positioning and flexible light distribution, adapting to varied pole heights and installation geometries. (IP66, CRI ≥ 80, 50,000-hour lifespan.)

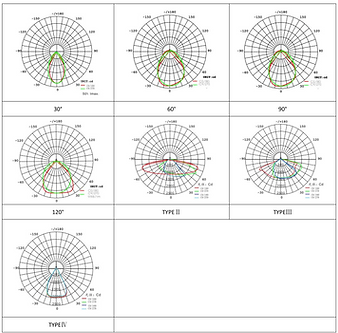

Photometric Curve (cd/klm)

FL52 LED Flood Light Specification_04.png
Application

Suitable for a wide range of outdoor lighting environments, including architectural lighting, industrial areas, factories, gyms, gardens, sea ports, and similar applications.

Product Parameters
Installation
FL52 LED Flood Light Specification_05.png
