130/150 lm/W Efficacy Options — Available in standard 130 lm/W and high-efficacy 150 lm/W configurations to meet varying energy performance requirements.
Universal Voltage Compatibility — Accepts 100-277 VAC at 50/60Hz with no installation restrictions, ideal for global deployment.
Die-Cast Aluminium Housing — Sand-blasted ADC12 aluminium delivers antistatic, high-temperature, and corrosion-resistant performance for outdoor durability.
Moisture-Proof Silicone Sealing — IP65-rated silicone gasket sealing prevents moisture and water ingress, extending service life in humid or exposed environments.
Stable, Flicker-Free Driver & 5-Year Warranty — High power factor (>0.9) and low-THD driver ensure consistent, flicker-free output, backed by a comprehensive 5-year warranty.

Architectural wall(airport, exhibition, residence, schools, hotels)

Dimension (unit: mm)

Product Parameters

Take apart the PC cover and fixture housing.
Put the fixture on the wall; drill 3 holes to get through the housing.
Get expansion screws into the holes, match the fixture to the bolts, then fix the fixture on the wall by screws lastly get the PC cover and fixture housing back together.

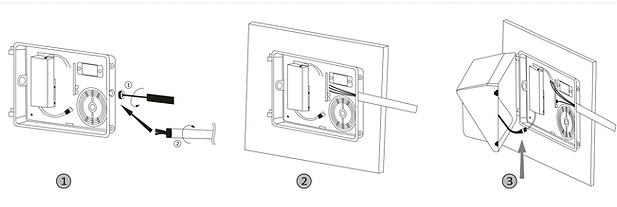

Loosen screws and carefully remove the front lens set from the back plate.
Remove 1/2'' plug from where you intend to feed conduit.
Drill out the holes (C) to secure it on the wall by choosing the proper screws.
Finish wiring (Black for line, White for neutral, and Green/Yellow Green for ground).
Replace the lens set on the hinge and finish the connection. Close the lens set and tighten the screws to fasten the lens set to the back plate.
